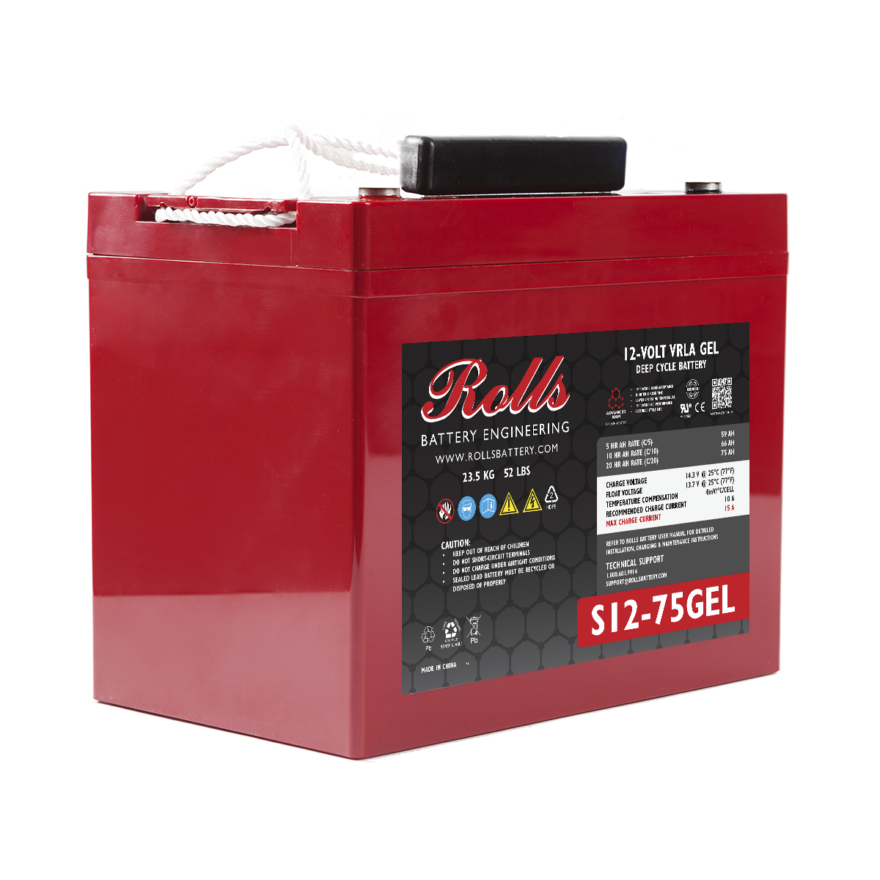

VRLA GEL DEEP CYCLE BATTERY |
S12-75GEL |
|
|
| Series | VRLA GEL | Warranty | See Warranty Terms |
|---|---|---|---|
| Volts | 12 | Design | G24 |
| Cells | 6 | ||
| Terminal Type | F11(M8) | ||
| Included Hardware | M8 stainless bolts & washers | ||
| Size & Thread | M8 | ||
| Charge | Discharge | |
|---|---|
| Charge Voltage Range | 14.3V @ 25°C (77°F) |
| Float Voltage Range | 13.7V @ 25°C (77°F) |
| Recommended Charge Current | 10 A |
| Maximum Charge Current | 15 A |
| Self-Discharge Rate | Less than 2% per month at 25°C (77°F) |
| Capacity |
|---|
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 102% | 100% | 85% | 65% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 80 AH | .8 A |
| @ 20 Hour Rate | 75 AH | 3.75 A |
| @ 10 Hour Rate | 66 AH | 6.6 A |
| @ 5 Hour Rate | 59 AH | 11.8 A |
| Cut Off Voltage | Constant Current Discharge | ||||||
|---|---|---|---|---|---|---|---|
| 1.75 VPC | 1 hr | 2 hr | 3 hr | 4 hr | 5 hr | 8 hr | 10 hr |
| 41.0 | 24.5 | 17.0 | 14.1 | 11.8 | 8.05 | 6.64 | |
| Specifications | |||
|---|---|---|---|
| Weight | 23.5 kg | 52 lbs | |
| Length | 260 mm | 10.24" | |
| Width | 169 mm | 6.65" | |
| Height Incl. Term. | 215 mm | 8.46" | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Container | ABS | ||
|---|---|---|---|
| Cover | ABS | ||
| Handles | Rope / Plastic Handle | ||
Cycle Life vs. Depth of Discharge
Capacity vs. Temperature
